Power Rating:300 kW

Voltage Range:400-480 V AC

Frequency:50/60 Hz

Inverter Type:Vector Control

Control Method:PWM (Pulse Width Modulation)

Communication Protocol:Modbus TCP/IP

Protection Class:IP54

Operating Temperature:-20°C to +60°C

Dimensions:355 x 158 x 225 mm

Weight:21.5 kg

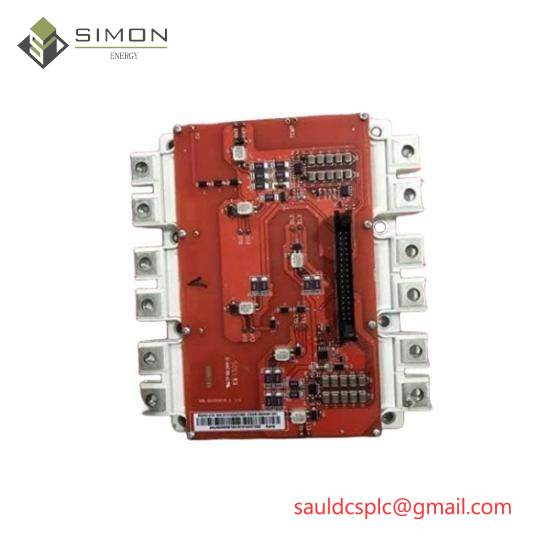

    The ABB BGAD-22C FS300R120E4 Motion Control Module is engineered to provide unparalleled performance and reliability in demanding industrial environments. This module is characterized by its robust design, capable of handling high-speed operations with precision.

    Featuring an advanced EtherCAT communication interface, it ensures fast and efficient data transfer, enabling seamless integration within complex automation systems. The module supports SERCOS III protocol, enhancing compatibility and flexibility across various control systems.

    With an operating voltage of 120V AC/DC and a current rating of 22A, this motion control module is designed to handle heavy-duty tasks with ease. It operates efficiently within a wide temperature range (-20°C to +60°C), making it suitable for use in extreme conditions.

    The ABB BGAD-22C FS300R120E4 is built with durability in mind, boasting a compact size of 105mm x 95mm x 65mm and weighing only 0.3kg, which makes it highly portable and easy to install. Its lightweight design does not compromise on functionality or performance.

    This module is ideal for applications requiring precise motion control, such as robotics, CNC machinery, and high-precision manufacturing processes. Its compatibility with a wide range of control systems and its robust construction make it a preferred choice for industries seeking high-quality motion control solutions.
