Number of Channels:8

Input Type:Digital AC

Input Voltage Range:10 – 30 VAC, 10 – 30 VDC

Off-State Input Voltage:3 VAC/VDC

Nominal Current:8 MA at 24 VAC/VDC

Off-State Current:1 MA AC/DC

Current Rating:Backplane: 85 MA

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

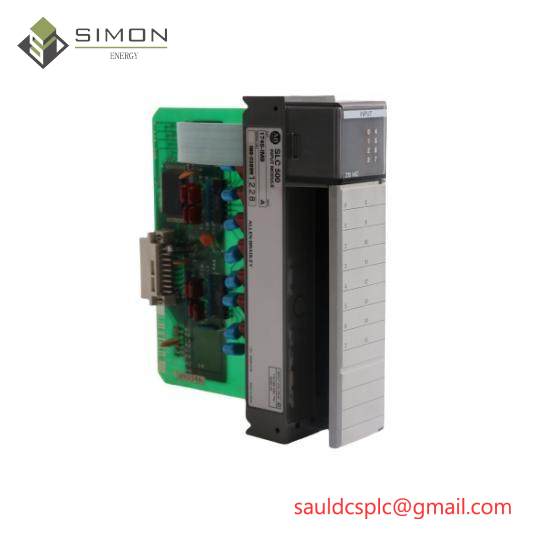

    The Allen Bradley 1746-IM8 Input Module is a high-resolution analog input device, specifically engineered for the SLC 500 programmable logic controller (PLC). It ensures accurate and reliable data acquisition from sensors and other devices within industrial automation systems.

    With its wide common mode voltage range of -20 to +20 V, the module can effectively handle various input signals, making it suitable for a broad spectrum of industrial applications. The 16-bit resolution provides exceptional precision for measuring changes in voltage.

    Featuring an open-type enclosure, this module offers easy access for maintenance and upgrades, ensuring continuous operation in harsh industrial environments. Its operating temperature range of 0°C to 60°C allows for deployment in most industrial settings, while the non-condensing humidity level ensures reliability in diverse climates.

    The Allen Bradley 1746-IM8 Input Module comes equipped with robust overvoltage protection of 7.5 VAC RMS, safeguarding against electrical spikes that could damage sensitive components. This feature is critical in protecting your system from unexpected power surges.

    Installation is straightforward, thanks to its compatibility with the SLC 500 system’s backplane, allowing for quick setup and integration into existing automation networks. Whether you’re upgrading an existing system or building a new one, the Allen Bradley 1746-IM8 Input Module is a versatile choice for enhancing the accuracy and efficiency of your industrial operations.
