Product Type:Analog Input Module

Number of Channels:8

Input Resolution:High-Resolution

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS

Input Range:-20 To 20 mA

Absolute Input Current:-30 To 30 mA (Max)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Weight:0.3 kg

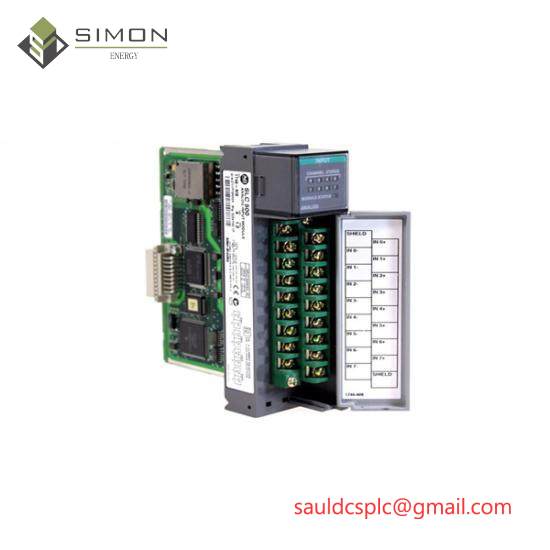

    Experience unparalleled precision in industrial automation with the Allen-Bradley 1746-NL8 Analog Input Module. Designed for seamless integration into complex control systems, this module excels in high-resolution analog signal acquisition.

    Equipped with robust overvoltage protection and an extensive input voltage range, it ensures reliable operation under diverse environmental conditions. Whether monitoring temperature, pressure, or flow, this module offers unparalleled accuracy and reliability.

    The 1746-NL8 features four high-precision channels, each capable of handling a wide range of input currents and voltages, making it suitable for a multitude of applications in manufacturing, energy, and process industries.

    Built with Allen-Bradley’s renowned quality and durability, this module stands the test of time, providing maintenance-free performance throughout its operational life. Its open-type enclosure ensures easy access for installation and maintenance without compromising safety.

    To maximize efficiency, the Allen-Bradley 1746-NL8 is compatible with a variety of Allen-Bradley PLCs and other compatible devices, ensuring a seamless integration within existing automation ecosystems. Upgrade your system today with the industry-leading 1746-NL8 Analog Input Module.
