Model Type:Bridge Module

Model Number:1756-EN2T/D

Manufacturer:Allen Bradley

Communication Speed:10/100 Mbps

Communication Protocol:EtherNet/IP

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

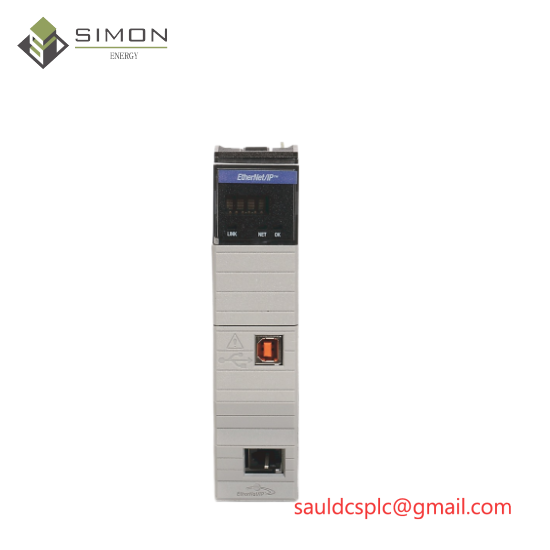

    The Allen Bradley 1756-EN2T/D ControlLogix Bridge Module is engineered for industrial environments requiring robust and reliable communication infrastructure. This module facilitates high-speed data transfer, making it ideal for applications where efficient system integration is paramount.

    With its Ethernet/IP compatibility, this bridge module ensures interoperability across various devices, enabling seamless communication within a ControlLogix automation system. The inclusion of 8 motion axes support makes it particularly suited for complex automation tasks that demand precise control over multiple actuators or motors.

    Equipped with 128 TCP/IP connections and 256 CIP connections, this module offers ample connectivity options for managing a wide array of networked devices. The RJ45 copper connector provides a secure and durable connection point for Ethernet cables, ensuring stable data transmission even under challenging industrial conditions.

    Operating at a power supply voltage of 220 V, the module is designed for use in industrial settings with a standard electrical supply. Its compact dimensions of 88 x 172 x 145 mm and lightweight design (0.4 kg) facilitate easy installation and maintenance, minimizing the impact on system layout and workflow.

    The Allen Bradley 1756-EN2T/D ControlLogix Bridge Module is certified to stringent industrial standards, ensuring reliability and longevity in demanding environments. Its integration into a ControlLogix system enhances overall system performance, offering enhanced diagnostic capabilities and simplified troubleshooting.
