Communication Protocol:EtherNet/IP

Operating Voltage:24 VDC

Power Consumption:≤ 2 W

Max Load Current:3 A

Number of Motion Channels:3

Control Modes:Position, Velocity, and Torque Control

Temperature Range:-20°C to +70°C

Enclosure Type:IP20

Environmental Compliance:UL, CE, CSA

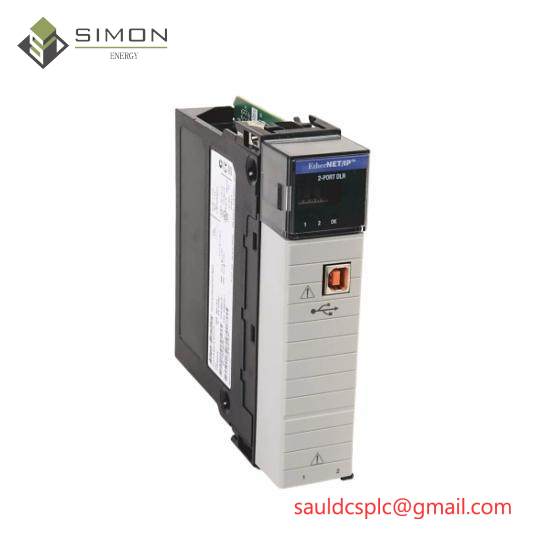

    The Allen-Bradley 1756-EN3TR/B ControlLogix Ethernet Motion Module is a robust solution for enhancing precision and performance in motion control systems. This module seamlessly integrates into the ControlLogix system architecture, providing advanced connectivity and processing capabilities.

    Featuring an EtherNet/IP interface, it ensures reliable data transfer rates for real-time communication, crucial for complex industrial automation tasks. The rack-mounted design allows for flexible installation in various industrial environments, making it suitable for both new installations and retrofit scenarios.

    With its extensive input/output capacity, the 1756-EN3TR/B can manage a wide range of signals from sensors and actuators, ensuring accurate control over machinery operations. Its compatibility with SERCOS III protocol facilitates seamless integration with a multitude of motion control devices, enhancing system efficiency and reliability.

    The module supports various encoder types, enabling precise measurement and control of motion parameters. This feature is particularly valuable in applications requiring high accuracy, such as robotics, packaging lines, and material handling systems.

    In terms of power consumption, the 1756-EN3TR/B operates efficiently, consuming less than 10 watts, which helps in reducing energy costs and environmental impact. Additionally, its operating temperature range (-25°C to +60°C) ensures reliable performance across different industrial climates.
