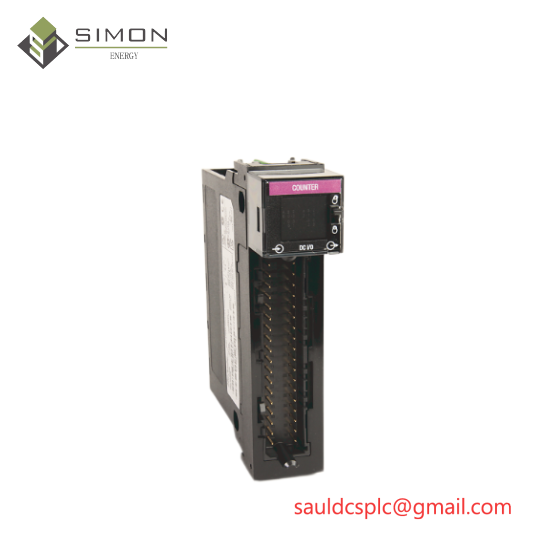

Manufacturer:Allen Bradley

Model Number:1756-HSC

Type:High Speed Counter Module

Communication Interface:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation Level:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Provided

    The Allen Bradley 1756-HSC module is a highly reliable and versatile solution for industrial automation systems requiring precise high-speed counting and monitoring. Its robust design ensures compatibility with a wide range of industrial communication protocols, making it suitable for integration into various control networks.

    Featuring up to 64,000 counts per second, this module offers unparalleled accuracy in speed measurement, ideal for applications in machinery, conveyor systems, and process control environments where precision timing is critical.

    With 16 input channels and 8 output channels, the 1756-HSC provides ample connectivity options for interfacing with other system components. Its extensive channel capacity facilitates complex control scenarios without the need for additional modules.

    Operating within an impressive temperature range from -40°C to 70°C, this module is designed to withstand harsh industrial environments, ensuring continuous operation in even the most challenging conditions.

    The compact size and lightweight design make installation and maintenance straightforward, reducing downtime and simplifying the overall system setup. Additionally, its low power consumption contributes to efficient energy use, minimizing operational costs.

    The Allen Bradley 1756-HSC module is engineered to enhance productivity and efficiency in industrial automation. With its comprehensive feature set and durability, it is an indispensable tool for enhancing the performance of manufacturing processes and equipment.
