Processor Speed:16 MHz

Memory:16 KB RAM, 16 KB ROM

Communication Ports:1 RS-485, 1 RS-232

Input/Output Points:16 I/O points

Operating Voltage:12 to 24 VDC

Operating Temperature:-10°C to 55°C

Protection Class:IP20

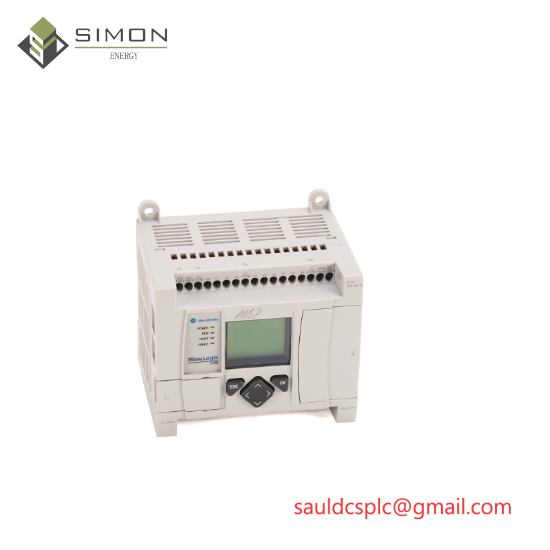

    The Allen-Bradley MicroLogix 1100 Controller 1763-L16AWA is engineered to offer unmatched reliability and precision in industrial automation. Its compact design, combined with an array of digital and analog inputs, makes it ideal for a wide range of applications in manufacturing sectors.

    Equipped with advanced programming capabilities, this controller allows for easy integration into existing systems, enabling seamless control and optimization of processes. Its ability to handle both standard and high-speed signals ensures flexibility in managing various operational requirements.

    Featuring a 120/240V AC power supply, the 1763-L16AWA ensures compatibility across diverse industrial setups. The inclusion of 16 points—consisting of 10 24V dc sink/source inputs and 6 relay outputs—provides ample connectivity for complex system configurations.

    The controller’s user-friendly interface facilitates quick and intuitive setup, reducing the learning curve for operators. Its navigation keys, including SET/ENTER and Up/Down/Left/Right arrow keys, simplify the process of making settings, ensuring efficient operation without compromising on functionality.

    With its small depth of 65mm, the Allen-Bradley MicroLogix 1100 Controller 1763-L16AWA is optimized for installation in thin and compact panels, enhancing space utilization in modern factory layouts. Moreover, its ladder sequence function included as standard supports complex programming tasks, streamlining system management and troubleshooting.
